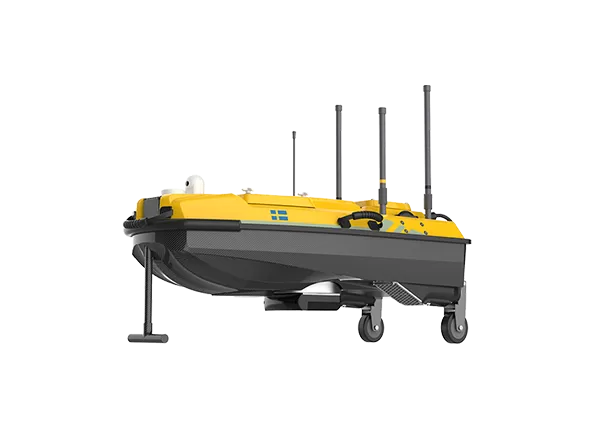

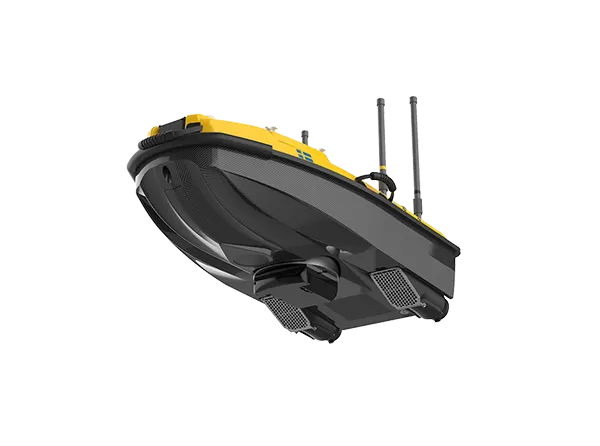

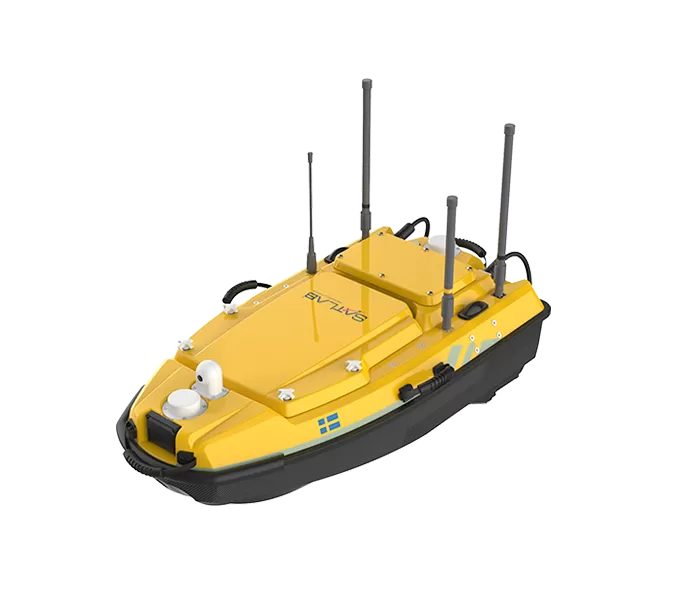

HydroBoat 1200 GEN2 USV

The HydroBoat 1200 GEN2 is Satlab’s next-generation compact multi-functional USV for marine surveying.It supports integration with the HydroBeam M2 multibeam echosounder, ADCP, side-scan sonar and water quality sensors, making it ideal for underwater topographic surveys, hydrological data collection and water quality monitoring.
Paired with the updated SLHydro USV Android app, it automates data acquisition for single-beam, multibeam and ADCP surveys. The platform features a built-in single-beam echosounder, a compact 1.05m length, and hot-swappable single/dual batteries. Combined with upgraded hardware, it ensures safer, more reliable survey operations.

Send An Enquiry
Category:

Description

Control System

Equipped with smart automatic operation, onboard data storage, GNSS & SBES data fusion, built-in 4G module and GNSS+IMU system to ensure steady positioning performance.

Software

It supports intelligent survey route planning, automatic multi-type data collection, full safety functions, long-distance 4G connection and real-time camera monitoring.

Hardware

Compact 1050mm/29kg design features dual battery options with over 4 hours runtime, IP67 twin-hull structure, millimeter-wave radar avoidance and anti-tangle propellers.

Payload

Supports up to 40kg payload, compatible with dual-frequency echosounder, multi-beam system, multi-brand ADCP and water quality monitors.

Applications

Rivers Lakes
  • Riverbed topographic mapping
  • Underwater terrain mapping
  • Hazardous sections monitoring
  • Reservoir capacity estimation
  • Dredging volume calculation
  • Siltation & ecological monitoring
Reservoirs Ports
  • Reservoir basin mapping
  • Channel and basin sweep surveys
  • Dam safety monitoring
  • Dockside depth monitoring
  • Siltation measurement
  • Underwater obstacle detection



Download Brochures

HydroBoat 1200 GEN2-Brochure-EN-20260609(s)

HydroBoat 1200 GEN2-Brochure-JP-20260610(s)

HydroBeam M2-Brochure-EN-20260618(s)
